Note: The machine should be operated while maintaining close contact on the guide which was fixed firmly on the work piece

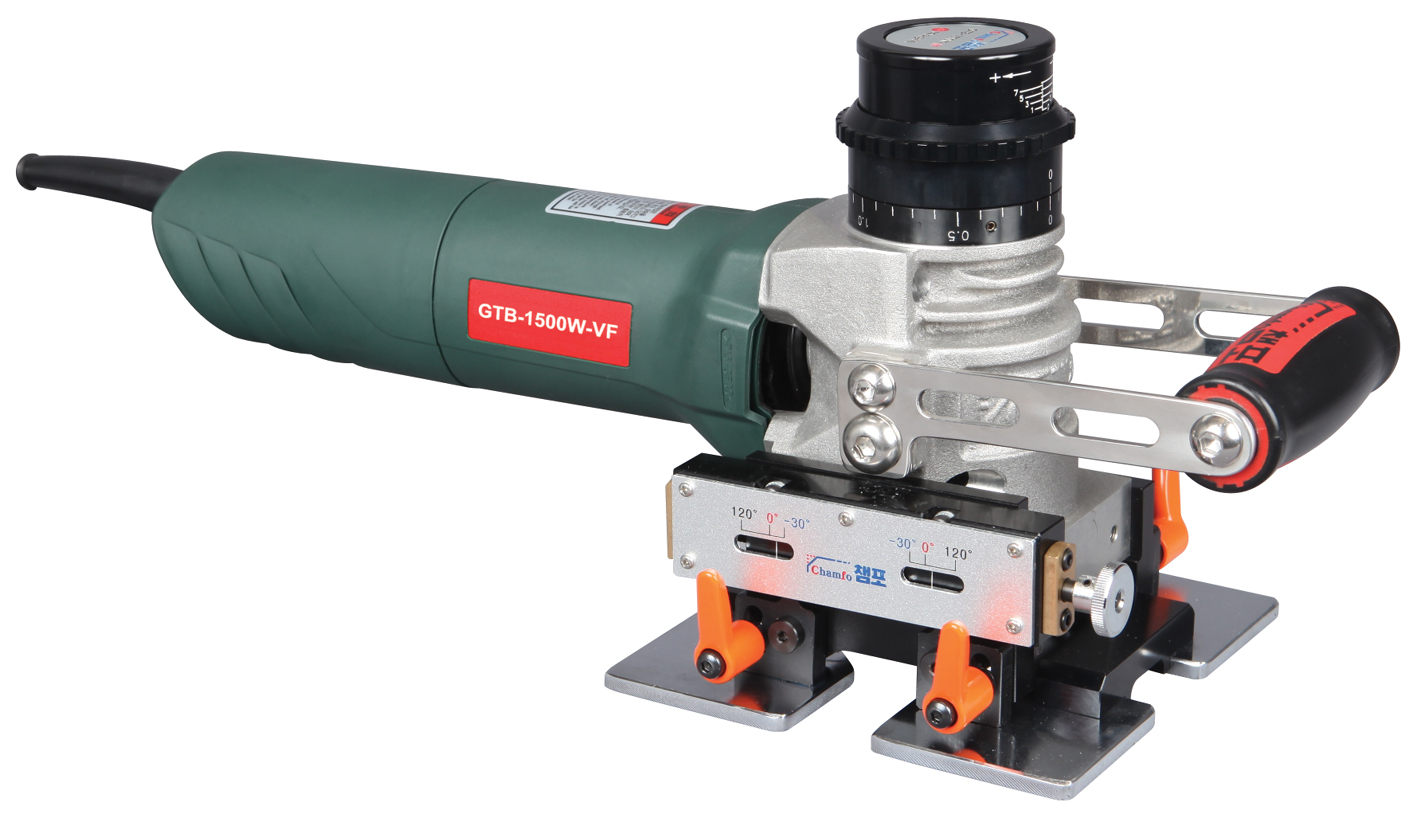

WELD BEAD REMOVER (O/D)

GTB-1500W-VF4

Height Adjustment	One-touch Spline Controller
Adjustment increments	Minimum 0.1 mm step
Angle adjustment	120° - 180° - 210°
Usage	Shaving of weld bead outside of the pipe(length direction)
Shaving range	Width: 20mm, Height:  -4 mm ~ +4 mm
Size	Dimension of between guide plat: 25mm O/D of milling head : 30mm
Weight	5 kg
Power	1080 W
Inserts	3EA
	CFWB110350
Application	Non-ferrous metal, Steel, other materials

#One-touch adjustment #Face-mill #0.1mm #Doesn’t loosed while operating (auto lock) #Pipe #Weld bead removal #Weld bead shaver #take off the weld bead #weld bead #the bead #After welding #Flat #cutting
