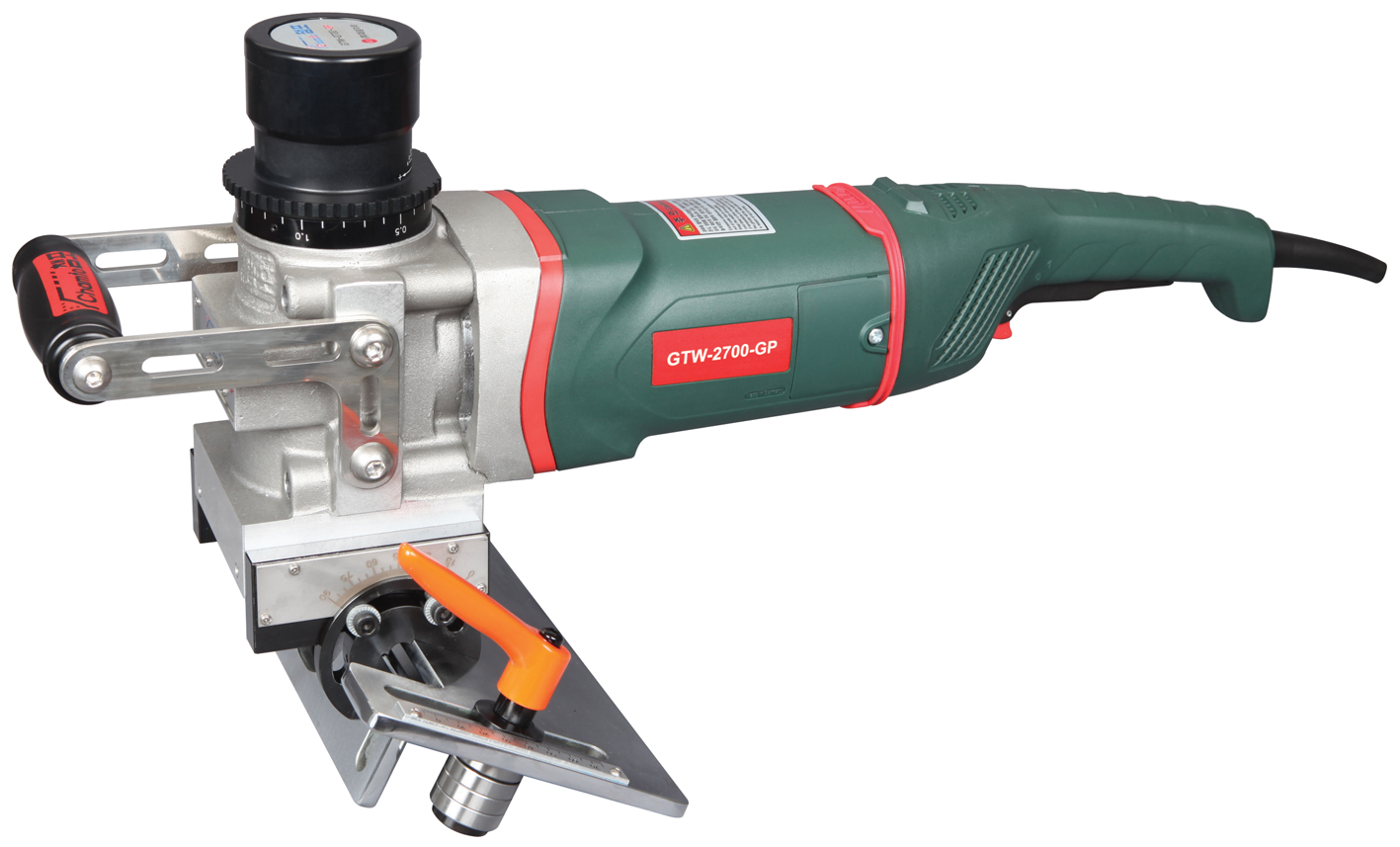

BEVELLER FOR WELD PREPARATION
GTW-2700GP
|
Adjustment Increments |
Minimum 0.1 mm step |
|
Usages |
Beveling for weld preparation (Plates& Pipes & Circular plate) |
|
Maximum bevel range per angle |
0° ~ 90° |
|
Deg. |
Thickness (inch) |
Width (inch) |
|
0 ° |
35 mm (1.377) |
14 mm (0.551) |
|
15 ° |
33 mm (1.299) |
34 mm (1.339) |
|
30 ° |
28 mm (1.102) |
32 mm (1.260) |
|
45 ° |
19 mm (0.748) |
27 mm (1.063) |
|
75 ° |
3.6 mm (0.142) |
14 mm (0.551) |
|
90 ° |
14 mm (0.551) |
15 mm (0.591) |
|
Applicable circular plate |
min. 350 or bigger |
|
Pipe |
300A (12') ~ 600A (24") |
|
Weight |
13.7kg |
|
Power |
2600W |
|
Inserts |
4 (3)EA |
|
CFWB140350 |
|
Applications |
Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials |
|
